Electro galvanized and hot dipped galvanized welded wire mesh rolls are widely trusted metal mesh materials for construction, agricultural fencing, animal housing and site protection. Our factory provides a full range of wire diameter, aperture, roll width and roll length options. Besides galvanized grades, we also stock 201 and 304 stainless steel welded wire mesh for harsh corrosive environments.
For matching metal perforated solutions, you may view our Acoustic Perforated Panels, Decorative Perforated Panels and Anti-Slip Perforated Panels.
The production and coating performance follow international coating standards defined in ISO 1461:2022, covering zinc coating thickness and anti-corrosion testing of hot dip galvanized steel components. You can review the full standard specification on the official ISO portal: ISO 1461.
We manufacture welded wire mesh rolls with precise welded joints and flat sheet surface. All dimensional tolerances are controlled referring to ASTM F2453/F2453M, the standard specification for uniform mesh welded wire fence fabric in rolls and panels.

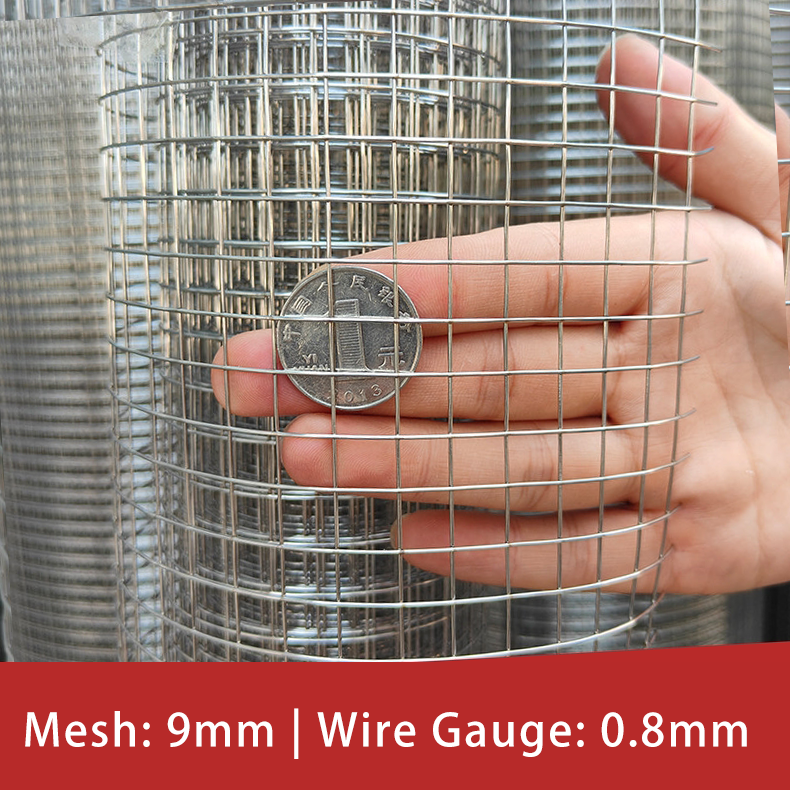

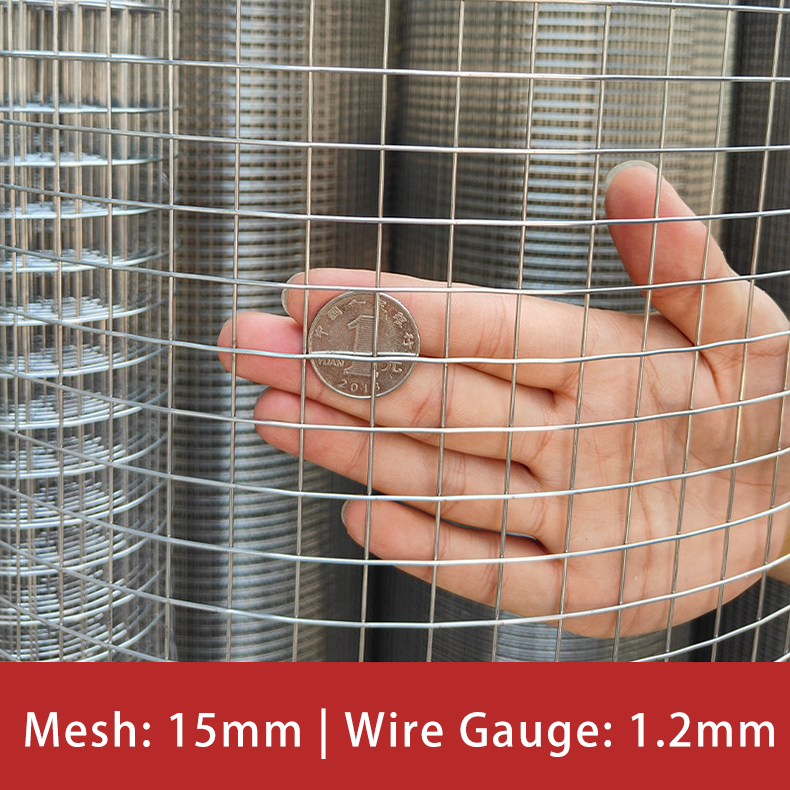

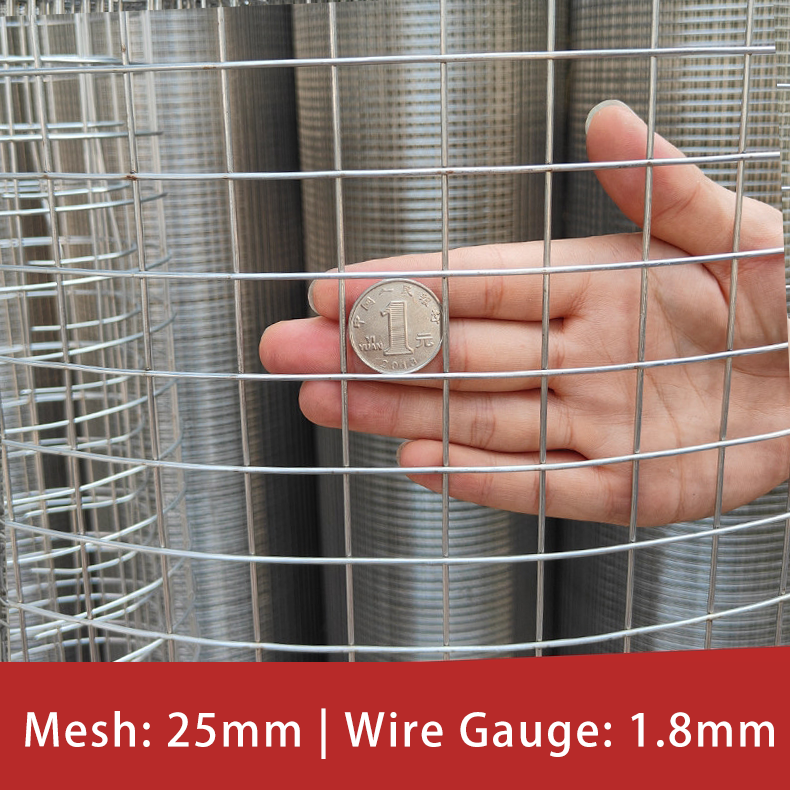

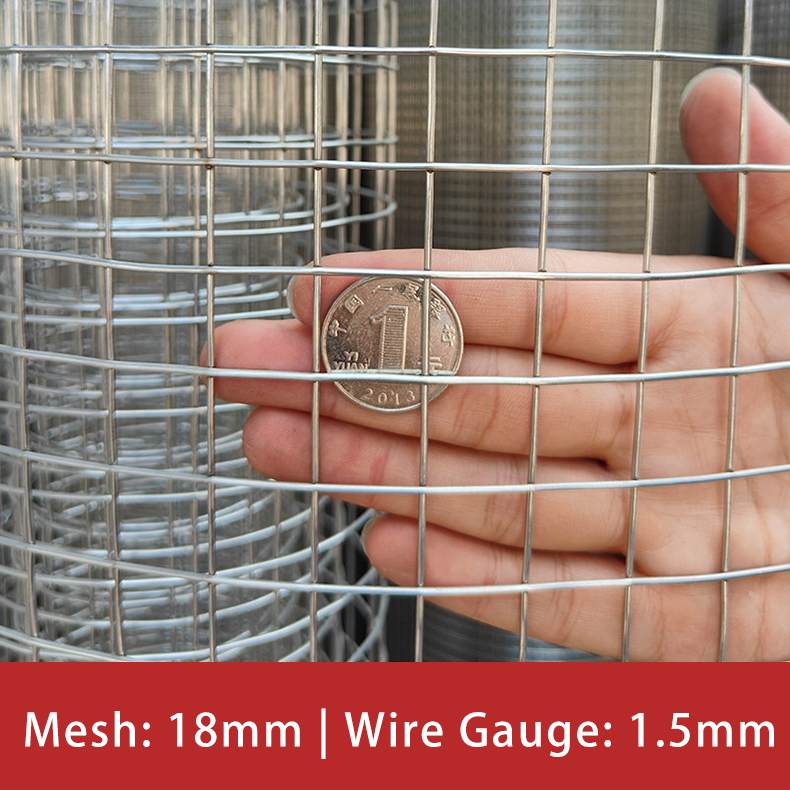

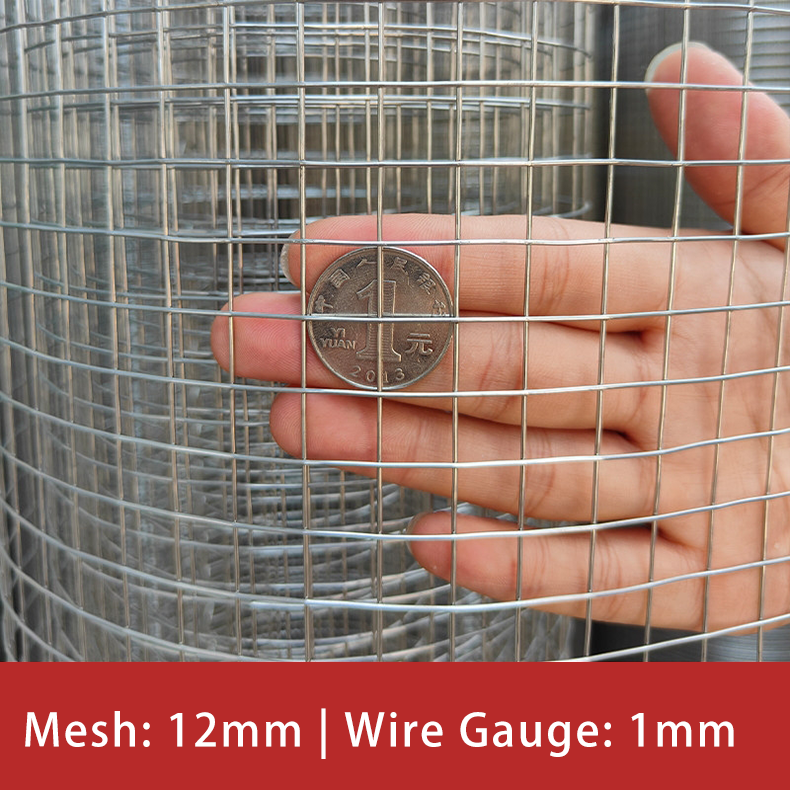

- Wire Diameter: 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1mm, 1.2mm, 1.5mm, 2.0mm
- Aperture: 3mm, 6.4×6.4mm, 9.5×9.5mm, 11×11mm, 12.7×12.7mm, 21.9mm, 25mm, 25.4×25.4mm, 76.2×76.2mm
- Roll Width: 0.5m, 0.6m, 0.8m, 1m, 1.2m, 1.5m, 1.8m, 2m, 2.5m
- Roll Length: 10m, 15m, 20m, 30m
- Surface Treatment: Electro-galvanized, Hot-dip galvanized
- Optional Raw Material: Grade 201 / Grade 304 stainless steel wire
Electro galvanized mesh delivers a bright, clean surface and economical cost for indoor and dry environments. Hot dipped galvanized mesh features thicker zinc layers, suitable for outdoor, humid and coastal projects. The welding strength of welded fabric is verified by test methods in ISO 15630-2:2019 for steel reinforcement welded fabric.
Galvanized welded wire mesh serves diversified sectors from civil construction to farm breeding. In construction projects, it acts as concrete reinforcement mesh to reduce concrete cracking. The American Concrete Institute published a dedicated guide PRC-439.5-18 to specify welded wire reinforcement application rules for concrete structures, available at ACI official resource library.
It is also commonly used for garden boundary fencing, poultry cages, livestock enclosures, site isolation barriers, sieve separation, machinery protection covers and temporary construction fences. For civil reinforcement design reference, ASCE Journal of Composites for Construction has released research about steel wire mesh reinforced cementitious matrix for masonry strengthening, which supports engineers to evaluate mesh load performance.
If you are sourcing decorative metal sheet for building facades, our Decorative Perforated Panels can match the same project supply schedule.
Our welded wire mesh production complies with multiple global recognized standards to meet US, European, Southeast Asia and Middle East market inspection requirements.
ASTM A1064/A1064M defines specifications for carbon steel welded wire reinforcement used in concrete structure, covering tensile strength and wire mechanical index. ASTM A740-21(2026) sets criteria for galvanized welded hardware cloth, suitable for small aperture protective mesh and screening usage.
Salt spray anti-corrosion test follows ASTM B117 salt fog testing practice to simulate coastal and high humidity working conditions. Our QC team inspects every batch for mesh opening consistency, weld breakage rate and zinc coating thickness before packing. When you need non-slip walkway metal sheets together with fence mesh, check our Anti-Slip Perforated Panels.
Additional coating performance validation aligns with EN 10244-2, the European standard for non-ferrous metallic coatings on steel wire, widely accepted for EU import inspection.
A Malaysian poultry farm client once purchased low-quality electro galvanized mesh from another supplier. Within only 6 months, the wire surface started heavy rust, many welding spots broke, and chickens escaped through damaged mesh holes. Replacing the whole cage system brought high recurring labor and material cost.
After switching to our hot dipped galvanized welded wire mesh roll (wire diameter 1.2mm, aperture 12.7×12.7mm, roll width 1.8m, length 30m), the client saw obvious improvement. The thick hot-dip zinc layer resists ammonia corrosion inside chicken houses and humid tropical rain. After 24 months of on-site usage, only minor surface oxidation appears without weld failure. The client cut cage maintenance expense by 72% and placed repeat bulk orders for expansion.
This case proves that choosing suitable galvanized type and stable manufacturing quality directly reduces long-term project risk. The load and corrosion performance of wire mesh under agricultural environment can refer to the peer-reviewed research from Archives of Civil Engineering, which analyzes metal mesh stability under long-term humid loading conditions.
Welded wire mesh rolls are flexible and easy to cut, bend and install on site. For concrete reinforcement application, workers should fix the mesh at the middle layer of concrete to gain the best anti-crack effect. For fencing and animal cages, we recommend hot dipped galvanized versions for outdoor exposure, while electro galvanized mesh fits indoor partition and dry workshop protection.
Custom specifications are available: we can adjust wire gauge, hole size and roll dimension based on drawing requirements. We support mixed container shipment together with perforated metal panels to help buyers save ocean freight cost. Our technical team can provide material test certificate (MTC) and standard test report upon request for tender projects.
For geotechnical applications such as slope stabilization with welded mesh, designers can reference findings published in ASCE Journal of Geotechnical and Geoenvironmental Engineering for long-term ground reinforcement design.
